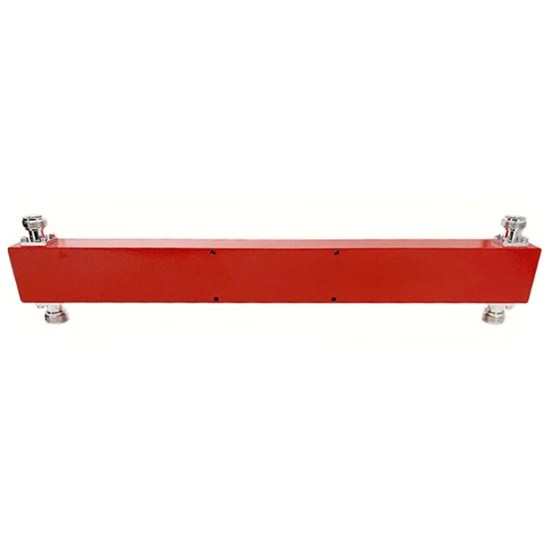

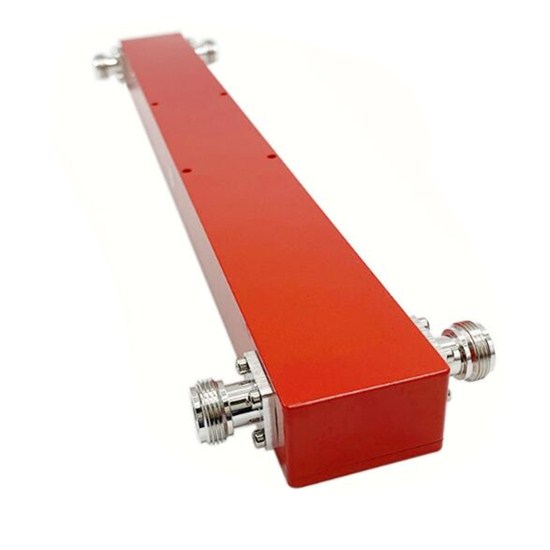

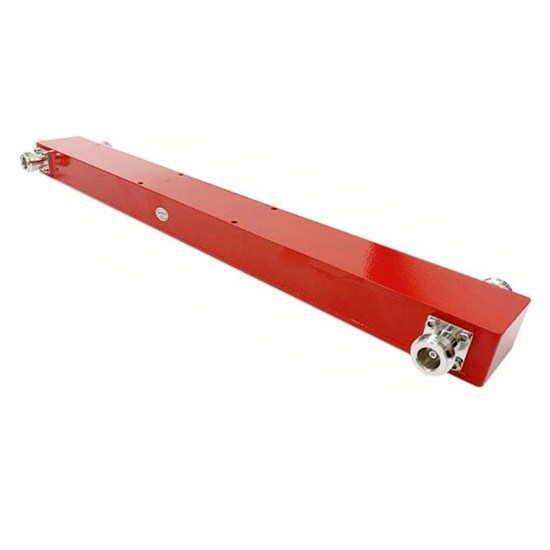

Public Safety 138-960MHz 3dB Hybrid Coupler Combiner N Female Connector

  • Model:RT-HC0202-1396-NF
  • Frequency:138-960MHz
  • VSWR:1.30
  • Application:IBS/BTS/DAS/RADIO (Indoor/Outdoor)
  • Customize:OK
BASIC INFO

Low Frequency Band Covering VHF, UHF Band
·High Directivity
·Indoor/Outdoor
·Available with N, 7/16 DIN, 4.3/10 Connectors


Electrical Specification       Model:RT-HC0202-1396-NF
Frequecny Range 138-960MHz
Coupling 3±1.30dB
Insertion Loss 1.30dB
Isolation 18dB
VSWR 1.30
Color Red Plated
Average Power 200W
Impedance 50 ohm
Connector N-Female
Temperature -30℃ - +70℃
Application Indoor/Outdoor
Net Weight 1.10Kg
